Broken Bolt Master Extractor Kit 35 Piece

Master Extractor Kit 35 Piece

This 35-piece Broken Bolt Master Extractor Kit offers a comprehensive solution for removing broken bolts and studs. With its range of left-hand drill bits and twist-style eazi outs, it provides a powerful first option for any extraction job. The perfect addition to any toolkit for efficient and effective bolt removal.

Specifications:

• Manufactured from heat treated Chrome Molybdenum steel, designed to remove broken studs and bolts.
• Reverse spiral design for maximum grip and hex shaped head.
• Recommended drill bit size (for pilot hole) etched on each extractor.
• Supplied with left hand drill bits that extract while you drill.
• Designed to remove broken studs and bolts.
• Suitable for high torque applications.

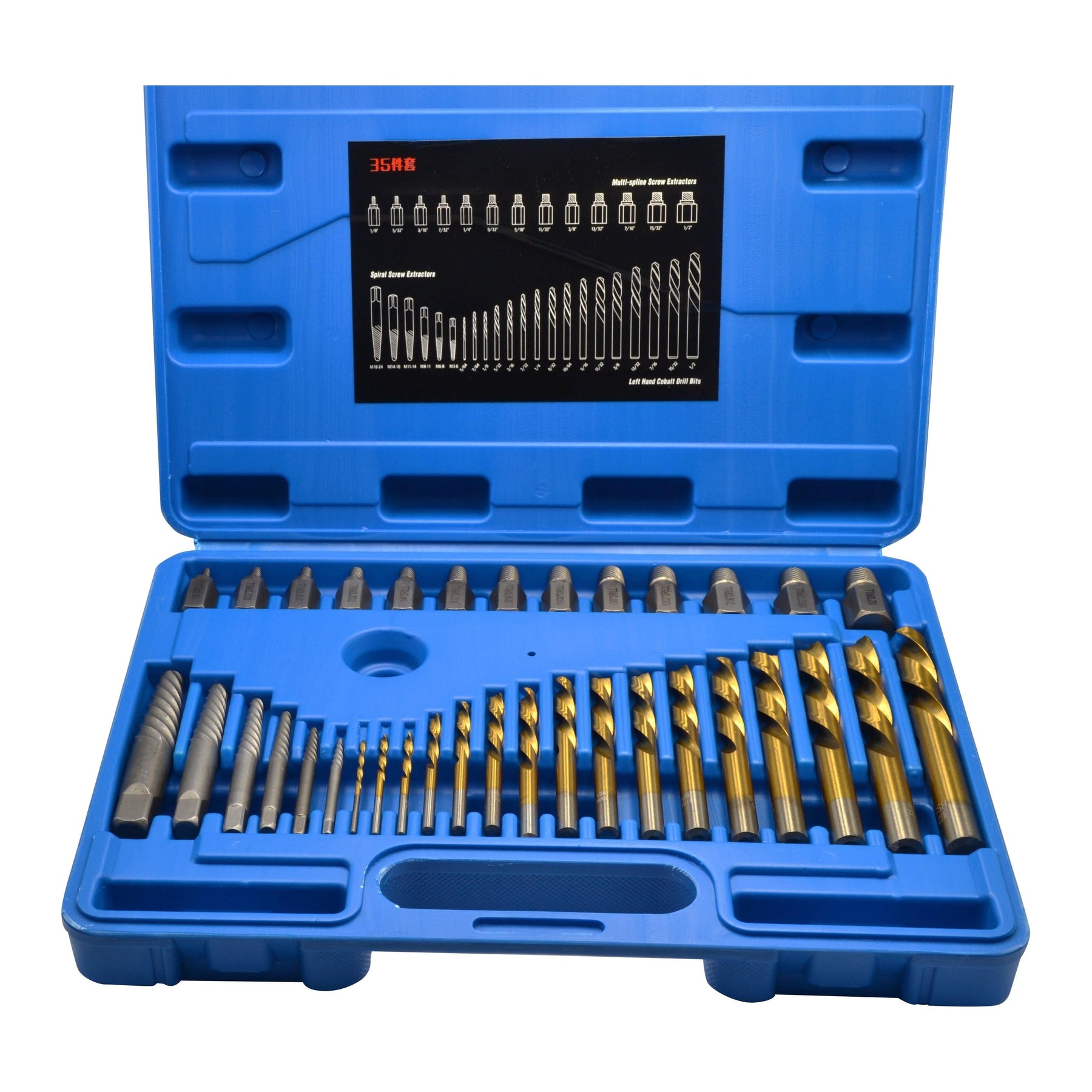

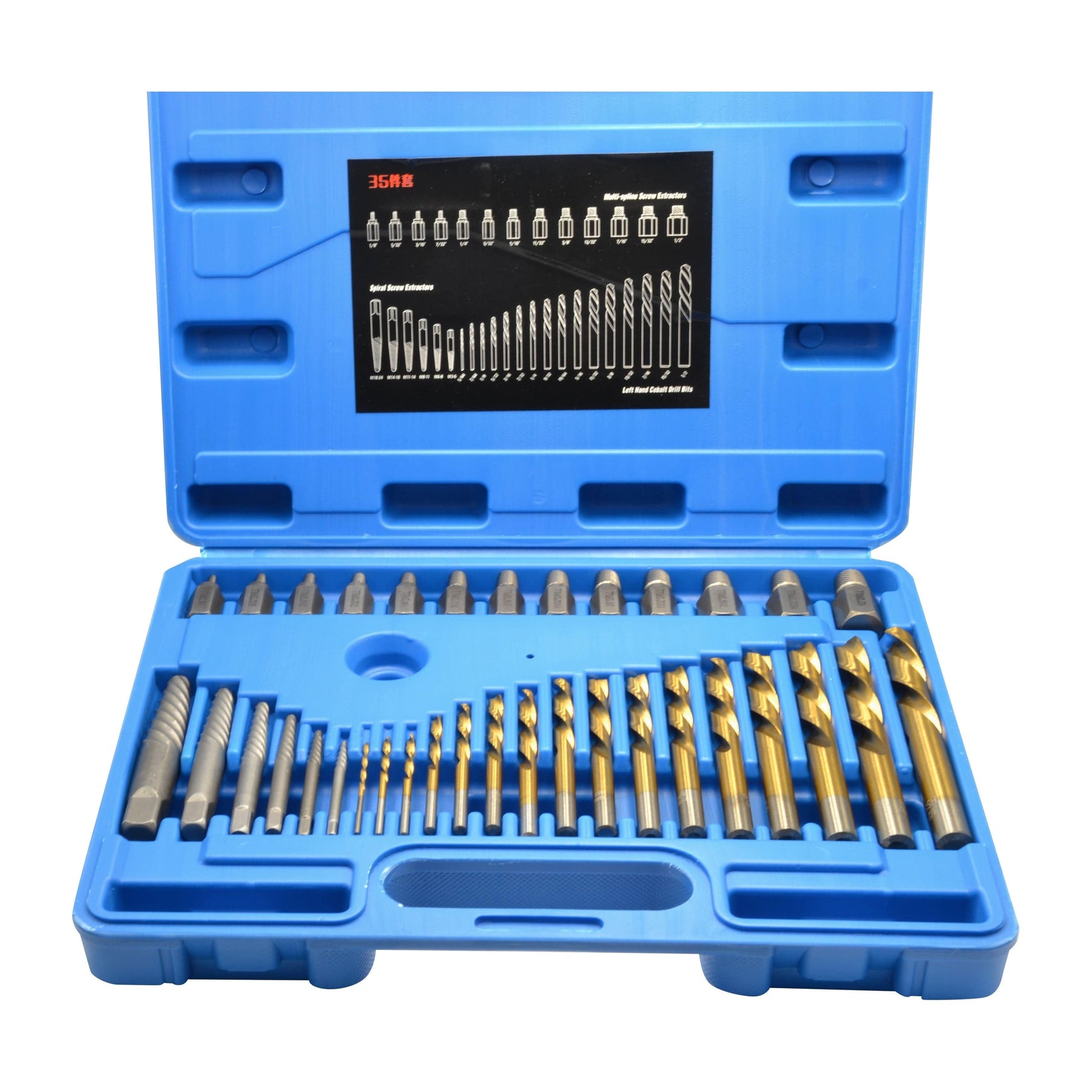

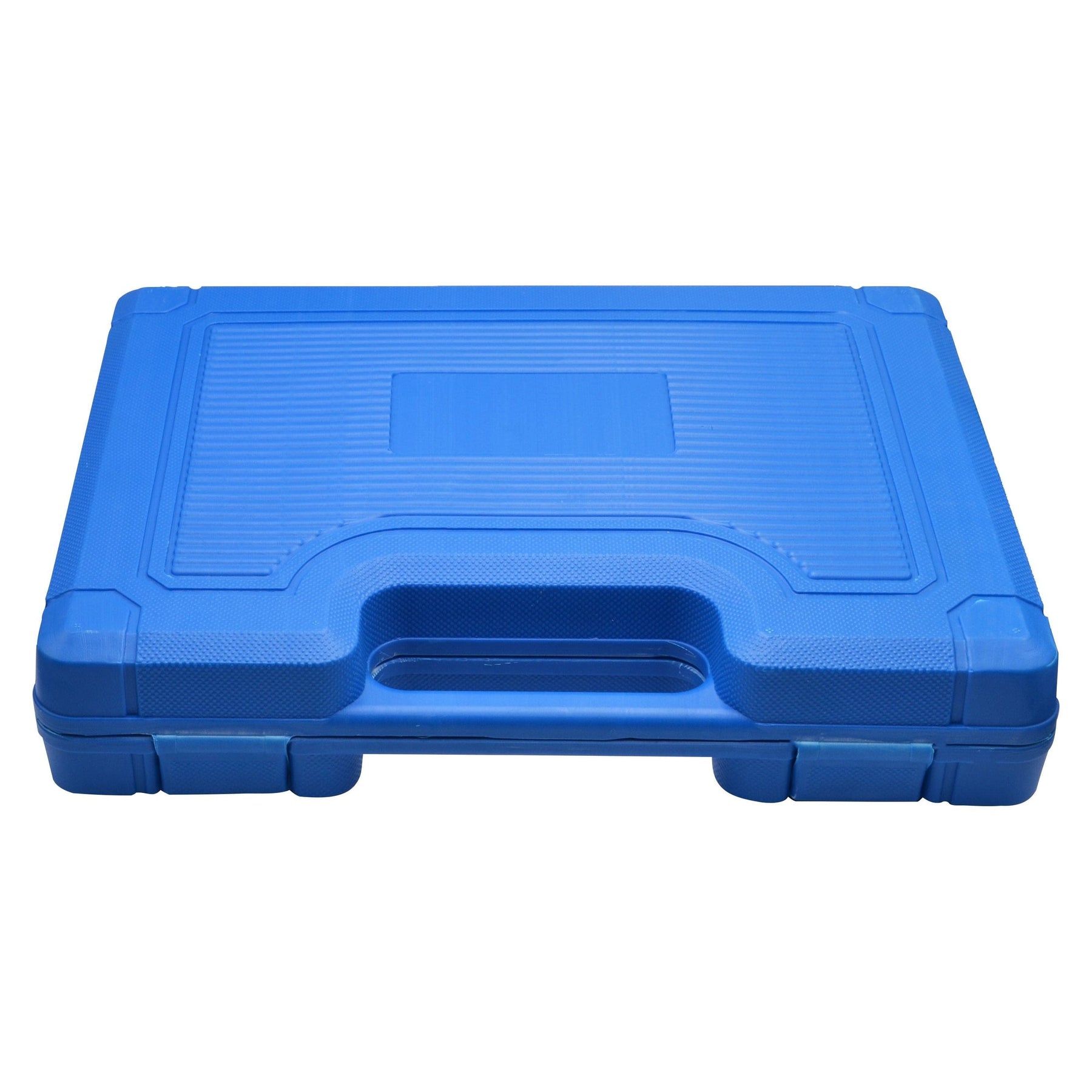

• Everything in a handy storage box.

Instructions:

• 1. Drill out the damaged bolt/stud using the correctly sized left hand drill bit supplied. For best results drill through the bolt.
• 2. Gently tap the extractor into the drilled hole.
• 3. Using a hex spanner or socket unscrew as you would any bolt or nut.
• 4. The left hand spiral of the extractor will tighten on the wall of your broken bolt /stud and wind out.
• 5. To remove your extractor be sure to hold the bolt/stud securely in a vice and tighten, right hand turn to remove.

Kit Incudes:

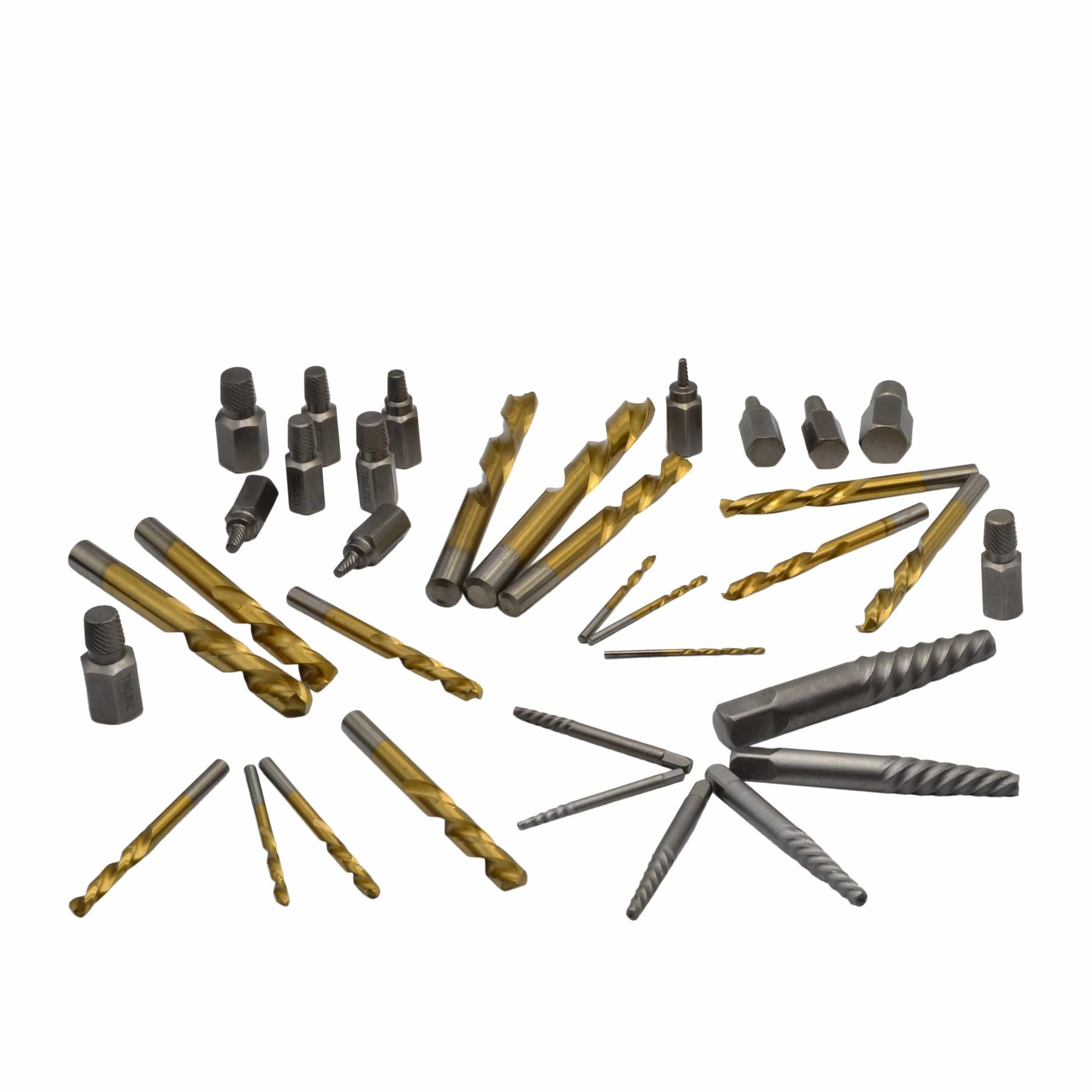

• Set contains multi-spline extractors, spiral extractors and left-handed drill bits
• Drill bits: 5/64", 7/64", 1/8", 5/32", 3/16", 7/32", 1/4", 9/32", 19/64", 5/16", 11/32", 3/8", 13/32", 7/16", 15/32" and 1/2"

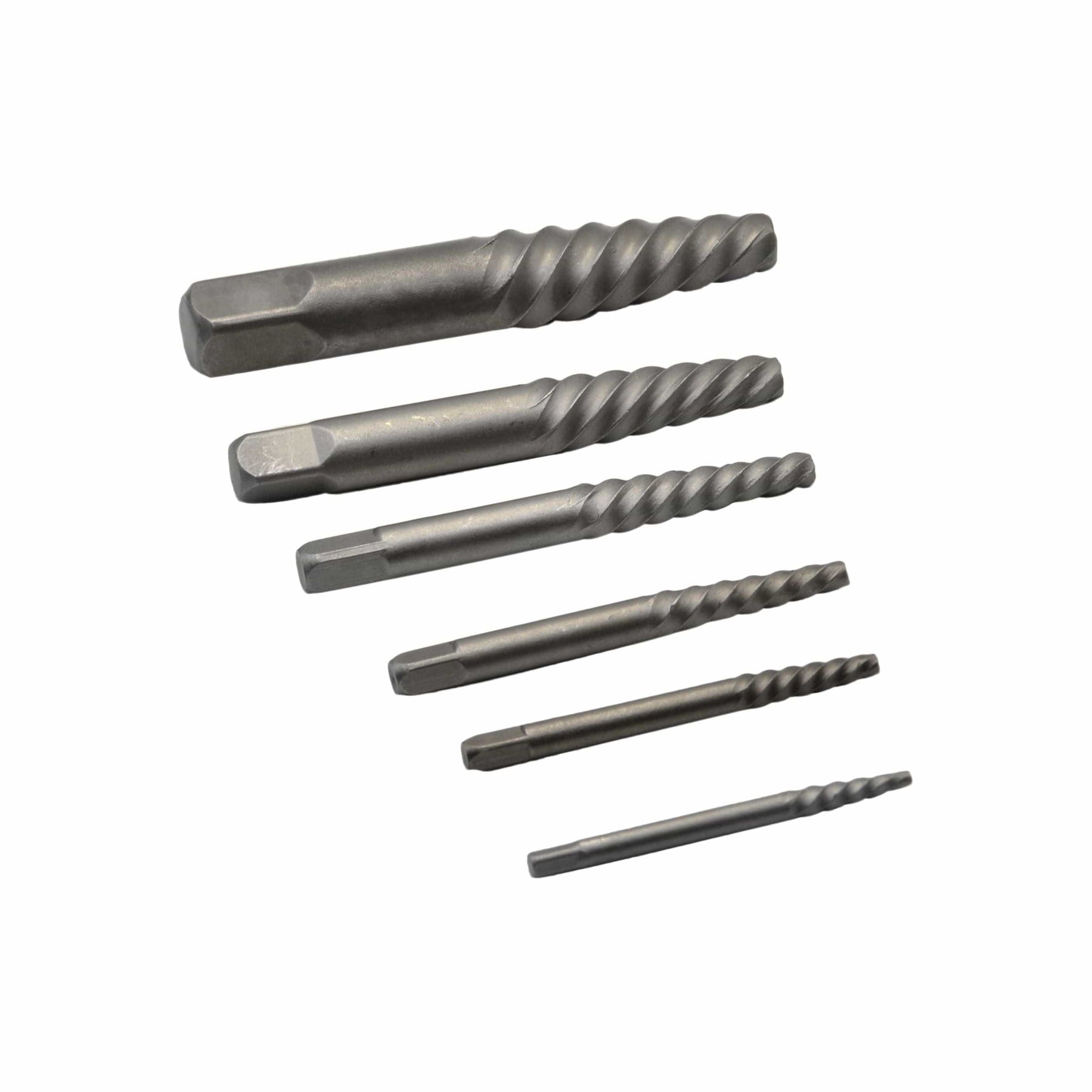

• Extractors: Ex-1, Ex-2, Ex-3, Ex-4, Ex-5 and Ex-6
• Multi-spline screw extractors size: 1/8", 5/32", 3/16", 7/32", 1/4", 9/32", 5/16", 11/32", 3/8", 13/32", 7/16", 15/32" and 1/2"
• Full range of spiral and multi-spline extractors for removing the toughest bolts and screws from 3/32" to 1-5/16"
